Description

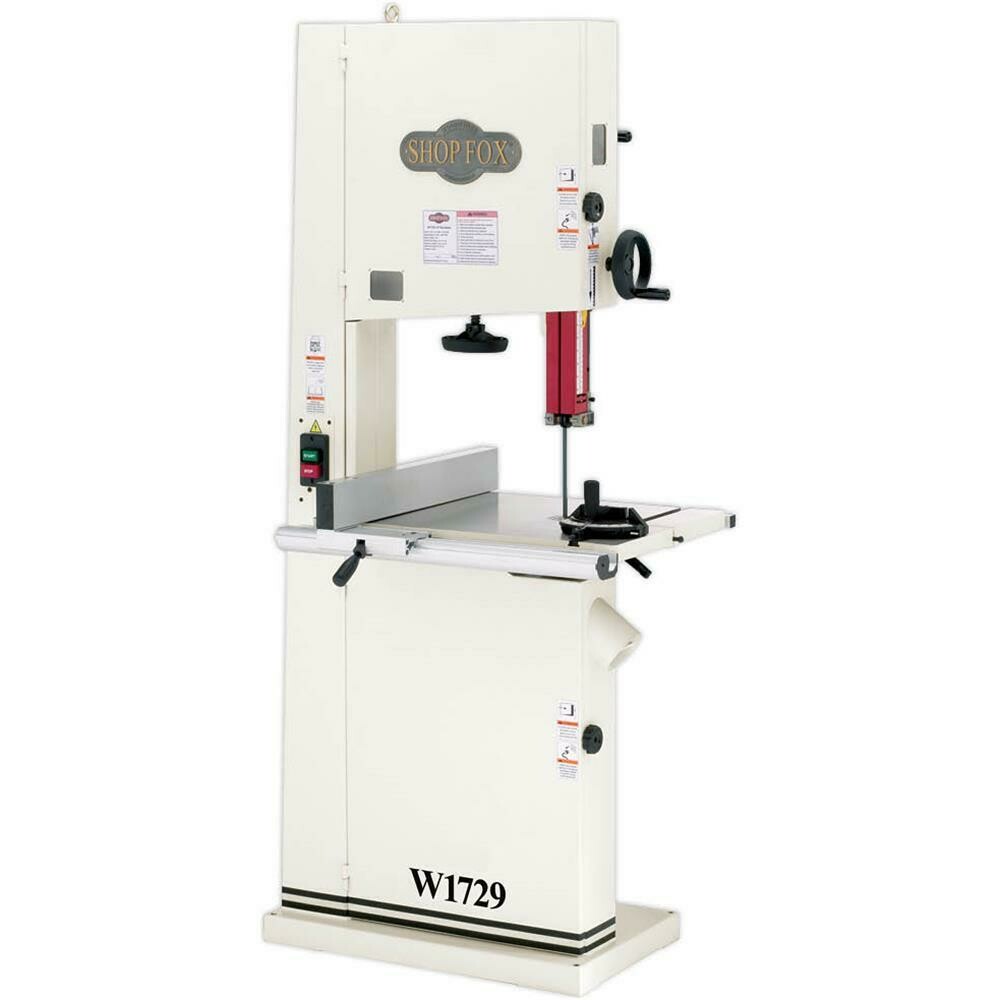

When extra cutting capacity and heavy-duty construction are required for big jobs, this 19" Bandsaw has all the features you need. Its 2 horsepower, single-phase motor has plenty of power to drive blades from 1/8" to 1-1/4" wide through the toughest wood and its 12" maximum cutting height, two blade speeds and deluxe fence make resawing as easy as it gets. Other features include cast iron wheels, a precision geared tilting table, rack and pinion upper guide adjustment, roller disc blade guides and blade tension indicator for accurate cuts and longer blade life. CSA certified meeting CSA C22.2 #105-1953, C22.2 # 71.2-10, and UL 987-7 standards!

Specifications:

• Motor: 2 HP, 110V/220V, single-phase, TEFC capacitor start induction, 60 Hz, prewired 220V
• Amps: 20 @ 110 / 10 @ 220V

• RPM: 1725

• Precision ground cast iron table

• Table size: 26-3/4" x 19" x 1-1/2" thick

• Table tilt: 10°L, 45°R

• Floor to table height: 37-1/2"

• Overall height: 76"

• Overall width: 36"

• Overall depth (including fence): 32"

• Cutting capacity/throat: 18-1/4"

• Maximum cutting height: 12"

• Blade length: 143" long

• Blade sizes range: 1/8" - 1-1/4"

• 2 Blade speeds: 1700, 3500 FPM

• Wheels: fully balanced cast iron with polyurethane tires

• Wheel covers: pre-formed, hinged steel

• Blade guides: roller disc with full enclosure protection and ball bearing design

• Bearings: sealed and permanently lubricated

• Blade tension indicator

• Micro adjusting gear table

• Height scale measurement

• Deluxe extruded aluminum fence with scale and magnifying window

• Miter gauge

• 4" dust port x 2

• Quick change blade release/tensioning

• Rack and pinion upper guide adjustment

• Includes 5/8" blade

• Approximate shipping weight: 470 lbs.
