SUPERIOR SHAPER MANDREL 1" RH OR 3/4" RH
SH-SUPR-1R, SH-SUPR-3/4R
$243.75
In stock
1
Product Details
Brand:
SUPERIOR MFG.
Weight (lb):
24
Height (in):
8
Width(in):
8
Length(in):
21
Package Type Box:
BOX
Cabinet Makers, Carpenters, Fine Woodworkers, Contractors, and home shop enthusiasts…anyone who works in wood or plastics can own a precision production equipment shaper at a Low Cost!

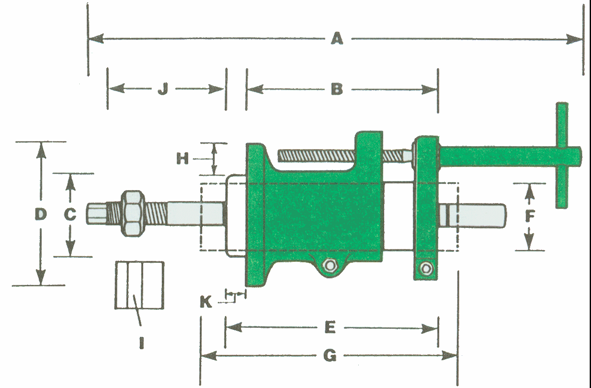

| Specifications Size | 1/2″ | 3/4″ | 1″ |
| A) Overall Length | 17″ | 17″ | 20-1/4″ |
| B) Housing Length | 5″ | 5″ | 6-1/2″ |
| C) Housing Diameter | 2-3/4″ | 2-3/4″ | 3-3/4″ |
| D) Flange Diameter | 5″ | 5″ | 6″ |
| E) Quill Length | 6-5/8″ | 6-5/8″ | 9-5/16″ |
| F) Quill Diameter | 2-1/4″ | 2-1/4″ | 3″ |
| G) Quill Travel | 3″ | 3″ | 3-1/2″ |
| H) Flange Width | 1″ | 1″ | 1″ |
| I) Spacers (2 sets) | 3/8″ 1/2″ 3/4″ |
3/8″ 1/2″ 3/4″ |
3/8″ 1/2″ 3/4″ |
| J) Length Below Nut | 4-1/2″ | 4-1/2″ | 5″ |
| K) Shoulder on Housing | 3/4″ | 3/4″ | 7/8″ |
| Suggested Cutter Diameters Weight | 2-3/4″10 lbs. | 3″ to 4″10 lbs. | 4″ to 6″ max.24 lbs. |
