Description

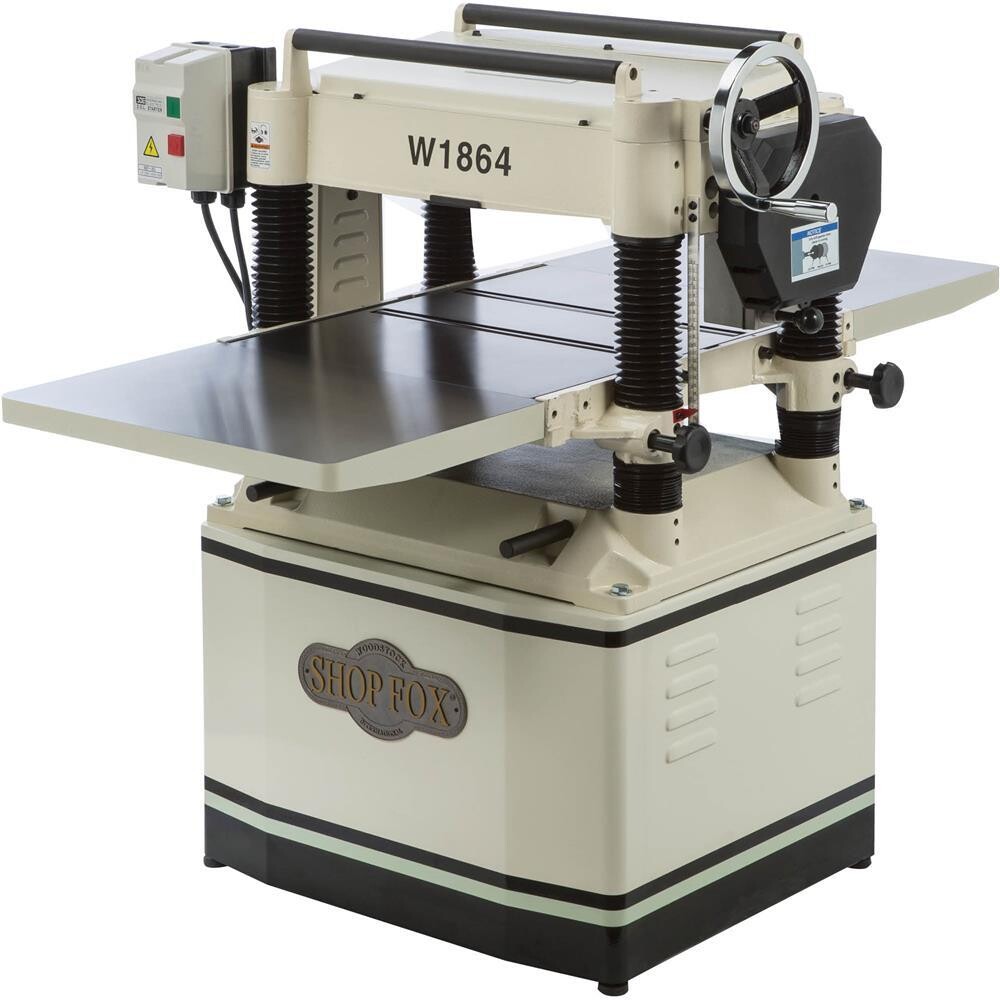

This 20" 4-knife planer with precision-ground cast-iron extension wings has the quality, capacity, and features to be a proud addition in any shop. Its 5 HP motor will handle material up to 20" wide by 8-5/8" thick, and its two feed speeds will give you the option of running at 956 cuts per foot, or a finer 1222 cuts per foot. Check out all of the other great features and you’ll agree, this is one fine machine!

Specifications

• Precision-ground cast-iron table and extension wings
• Top-mounted return rollers
• Magnetic switch overload protection
• 5" dust port
• Triple V-belt driven cutterhead
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Motor: 5 HP, 240V, single-phase
• Table size: 25-3/4" x 20"
• Maximum cutting width: 20"
• Maximum cutting height: 8-5/8"
• Maximum cutting depth: 1/8"
• Minimum length of stock: 7"
• Minimum stock feed thickness is 1/4"
• Feed rates: 16 & 28 FPM
• Number of knives: 4 HSS
• Knife size: 20" x 1" x 1/8"
• Cutterhead diameter: 3-1/4"
• Cutterhead speed: 5,000 RPM
• Overall width: 39"
• Overall depth (w/ extensions): 58"
• Overall height: 41"
• Approximate shipping weight: 816 lbs.
• CSA certified
